Highly reliable and high-performance large semiconductor packaging substrates, Multilayer PCBs for ICT infrastructure devices such as supercomputers and high density HDI PCBs for edge devices such information and communication equipment.
Multilayer PCBs(High Density Interconnect PCBs/
High Speed Transmission PCBs/Thick Copper PCBs)
We provide highly reliable multilayer PCB,
high speed transmission PCB and high current /
high dissipation
PCB
High Density Interconnect PCBs
We provide High-performance and High-reliability multilayer PCBs for ICT infrastructure systems and Social systems. Our High-density PCBs are applicable to place 0.8mm pitch 4000pin class BGA LSIs on both sides of the PCBs.
High Speed Transmission PCBs
We provide high-performance multilayer PCBs, enabling ultra-high-speed transmission, with the latest technology to minimize transmission loss at high frequency by the PCB structure, decreasing open Via-stub. The high-speed transmission over 40Gbps is achieved by overall technology of the pattern surface smoothing, the back-drilling fabrication and the low loss dielectric material optimization.
Thick Copper PCBs
We provide thick copper and good thermal conductive PCBs for large electric current applications of industrial systems and power electronics products. We propose best PCB solutions, applying copper coin technology and good thermal conductive materials for cooling high power devices.

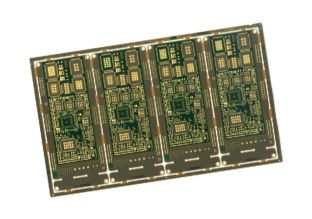

HDI PCBs
We propose the latest high-reliability, high-density buildup substrate technology for products for information and communications equipment that require high reliability.
HDI PCBs
We provide total solutions from PCB design and mounting simulation to manufacturing for high-performance and high-speed transmission equipment such as the latest communication equipment.

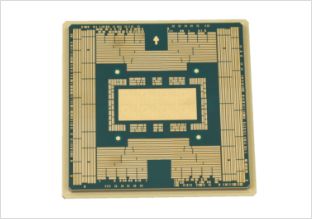

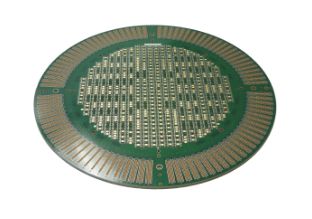

Probe Cards
Probe Cards
Our state-of-the-art technology provides innovative organic PCBs, best suited for probe cad applications with huge wiring capacity over 10000 nets, achieving high-quality signal integrity.
Packaging Substrate
Semiconductor packaging substrates for high-performance large die multichip LSIs,
that
enable high energy
efficiency at high-speed data transmission
and high frequency stable operation with
embedded thin film
capacitors.
We developed the base of the Semiconductor Packaging Substrate
Meet our members bringing insightful information and little-known anecdotes about the Semiconductor Packaging Substrate World
Substrate structure with embedded TFC (Thin Film Capacitor), GigaModule-EC
GigaModule-EC, a best suitable packaging substrate with embedded thin film capacitor (TFC) for next high-performance & energy-saving semiconductors
FC-BGA Substrates GigaModule-2
A state-of-the-art large FC-BGA packaging substrate with >100mm□ size buildup is available for large Die and multi-chip packaging with small quantity and short-term manufacturing
